UNIFLEX-Hydraulik GmbH
S 6
S 6

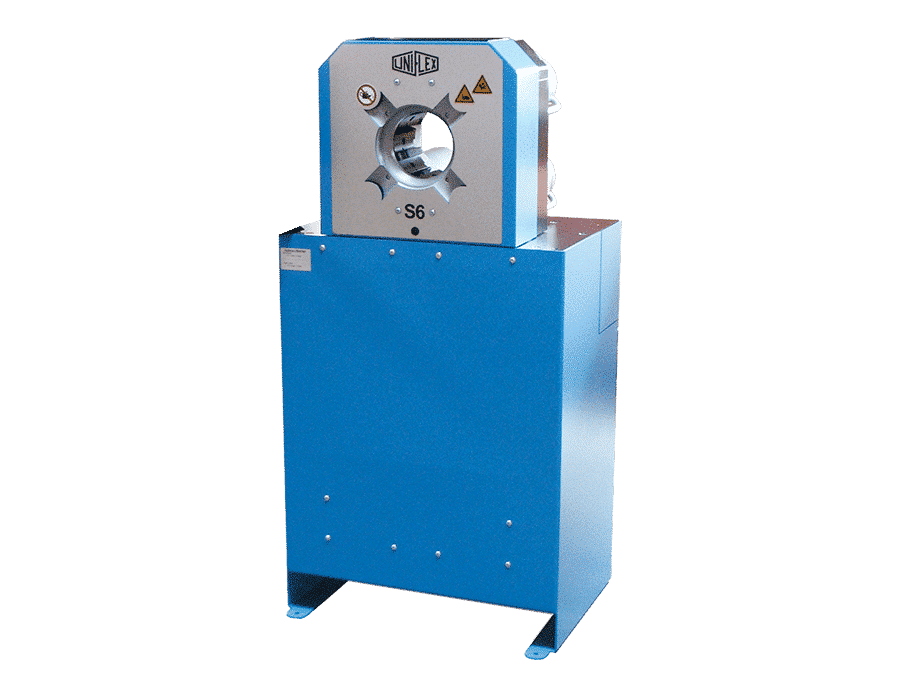

Hose press

S 6 Strong

Thanks to its slim, innovative design, high user-friendliness, versatility and long service life, the S 6 series sets standards for quality and economy. Their compact design allows ergonomic working. The long base dies enable the pressing of 90° fittings up to 2 inches, the proven lubrication-free slidestorage technology reduces maintenance costs and increases production quality. Now also in reinforced version up to 280 tons!

Variations:

  • S 6 S Ecoline
  • S 6 S
Request product

Features

Large opening travel

  • Easy pressing of elbow fittings without removing the pressing dies

Large pressing tool

  • Also allows crimping of up to 3 inch industrial hoses

Compact design

  • Finds place in any workshop

Plain bearing technology

  • Lubricant-free – for more cleanliness and longer machine life
  • Maximum productivity, with extremely low operating costs
  • No contamination of the hose line with grease
  • Ideal also for the food and pharmaceutical industry
  • Reduces press force loss by up to 20%
  • Consistenly accurate crimp force

Ecoline version

  • Entry level model with the same quality

CE compliant

Technical data

  •
  • SC 6 S Ecoline
  • SC 6 S

  • Crimp force (kN/Ton)

  • 2800/280
  • 2800/280

  • No grease: 20% less friction

  • Control

  • Control A
  • Control A

  • SAE R 15 / 4SH* 1 piece fitting

  • 2 “
  • 2 “

  • 4SH* 2 piece fitting

  • 2 “
  • 2 “

  • SAE R 15* 2 piece fitting

  • 2 “
  • 2 “

  • Max. crimp range (mm)

  • 100
  • 100

  • Opening travel (mm)

  • + 45
  • + 45

  • Opening without dies (mm)

  • 147
  • 147

  • Master dies length (mm)

  • 110
  • 110

  • Type of dies

  • 239-xx / 266
  • 239-xx / 266

  • Industrial

  • 3 “
  • 3 “

  • 90° Elbows

  • 2 “
  • 2 “

  • Closing speed (mm/sec)

  • 3,0
  • 6

  • Pressing speed (mm/sec)

  • 1,4
  • 1,4

  • Opening speed (mm/sec)

  • 5,3
  • 13,3

  • Noise level (dBA)

  • 69
  • 69

  • Drive (kW)

  • 4 kW 3 VAC
  • 4 kW 3 VAC

  • Oil (l)

  • 50
  • 70

  • Length machine (mm)

  • 700
  • 745

  • Width machine (mm)

  • 600
  • 600

  • Height machine (mm)

  • 735
  • 1.350

  • Weight (kg)

  • 320
  • 450
  • Options

  • 12 VDC / 24 VDC

  • –
  • –

  • 1 Phase

  • –

  • 3 phases

  • –
  • –

  • Control C.2

* Depending on the fitting.
** Without intermediate dies: S 6 only

Type of dies

Pressbacken
266
ø mm -mm-
62 110
67 110
71 110
74 110
78 110
84 110
86 110
92 110
239-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 65
14 65
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47 100
50 100
54 100
57 100
62 100

First Class Advantages

Option

S 6 S Ecoline:

  • 12VDC / 24 VDC (1-phasig)
  • Control C.2

S 6 S :

  • Control C.2

Packages

A Package includes the machine with dies.

  • Package = Machine + PB Ø 17, 20, 24, 28, 32, 40, 44, 50, 57, 71 + 266.239L + QDC 239.5 + QDS 239 B

Accessories

Extend this machine at all times with the following accessories:

Control C.2 Accessories

C.2

Description

12-VDC-24-VDC-Aggregate
The 12 VDC/24 VDC power packs offer space- and weight-saving application possibilities, e.g. for the assembly of service vehicles.
90-Grad-Endstueck
The S 6 series crimps even short 90° fittings with a long end piece. This is not possible with any other conventional machine.
