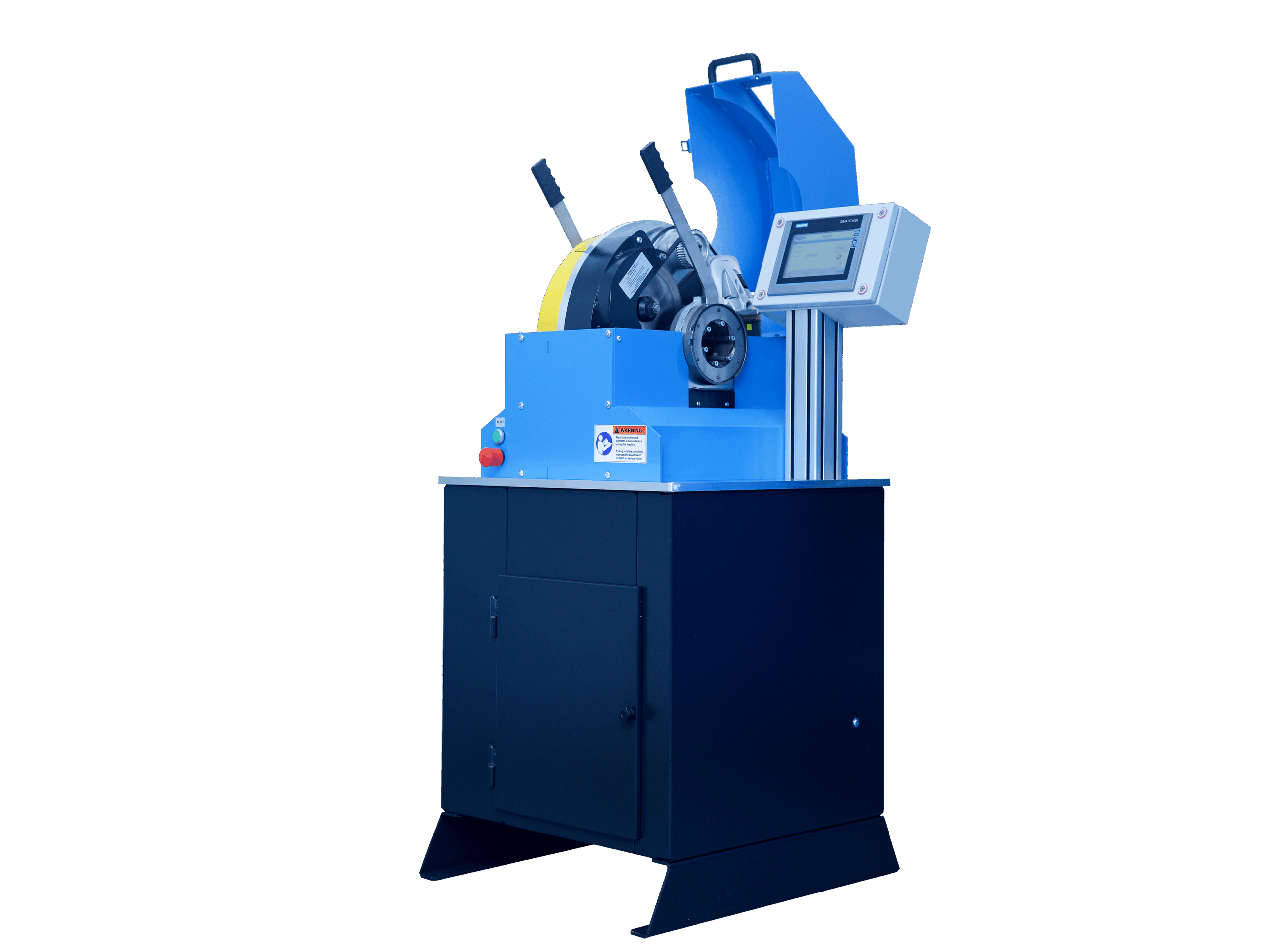

Hose cutting machine

USC 10 / 20 / 30


For corrugated metal hoses and PTFE hoses.
Perfect results without additional labor for immediate use in other processing operations, like welding. This planetary cutting machine, which is unique in the world, scores with an almost reject-free Production and high effectiveness. Usable for all nominal sizes, their cutting time is max. 25 seconds at 11/4 inch (Ø DN 32).


Features

Productive and ergonomic

  • No splicing of the braid, thus less scrap
  • 100 % higher effectiveness compared to conventional cutting methods
  • Centering hose guide
  • Shortest cut possible from 10 cm
  • No rewinding and unwinding with adhesive tape necessary
  • Use of standard cut-off knives
  • Injury-free further processing

Siemens Industry Color Touchpad

  • Highly visible operating display and improved user guidance on a color 6 inch display
  • Large, time-saving article memory
  • Reference run for optimum position of the cutting tool for setting the nominal hose diameters
  • Variable adjustment of feed time, cutting speed and cutting time
  • Monitoring of production through resettable total counters, batch counters or daily cut counters

CE compliant


Technical data

  •
  • USC 10
  • USC 20
  • USC 30
  • Working height (mm)

  • 1020
  • 1100
  • 1045
  • Wire braid

  • 2 “
  • 2 “
  • 2 “
  • Feed

  • pneumatic
  • pneumatic
  • pneumatic
  • Noise level (dBA)

  • 85
  • 85
  • 85
  • Air pressure (bar)

  • 6
  • 6
  • 6
  • Max. rotation trimming (rpm)

  • 60
  • 60
  • 30
  • Max. rotation wire forming blade (rpm)

  • 7200
  • 7200
  • 4100
  • Cutting blade (mm)

  • TM 200 x 2 x 25,4
  • TM 250 x 2 x 25,4
  • TM 350 x 3 x 32
  • Drive

  • 4,6 kW 3 VAC
  • 4,6 kW 3 VAC
  • 5 kW 3 VAC
  • Cutting blade (mm)

  • Ø 3/8″ – 2″ (DN 10-51)
  • Ø 2″ – 4″ (DN 50-100)
  • Ø 4″ – 6″ (DN 100-150)
  • Length machine (mm)

  • 730
  • 730
  • 900
  • Width machine (mm)

  • 670
  • 770
  • 1250
  • Height machine (mm)

  • 1400
  • 1500
  • 1520
  • Weight (kg)

  • 245
  • 340
  • 580
  • Control Siemens S 7

  • Article memory

  • Suction device *

  • Standard
  • Standard
  • Standard
  • Accessories

* Appropriate adapter required.


Video


First Class Advantages

Planetary cutting machines for corrugated metal hoses and PTFE hoses. The unique process allows the hoses to be separated quickly and cleanly without splitting the outer braid.

  • Prevents the braid from expanding, perfect and repeatable results
  • Makes trimming unnecessary
  • Improves your productivity
  • Easy mounting of sockets
  • Prevents assembly accidents
  • Touch screen with article memory (optional 5.7″ display)
  • Simple storable parameterization, adaptable to different types of hoses
  • Even more application possibilities, for more hose types, also for PTFE

Accessories

Extend this machine at all times with the following accessories:


Description

Schlauchklemmvorrichtung
Improved centered hose clamp with longer, ribbed retainer rollers that provide a better grip.
Planententrennung
Smooth separation with the planetary separation with USC compared to a conventional machine.
