SC 12 i
SC 12 i
Hose crimper

SC 12 i

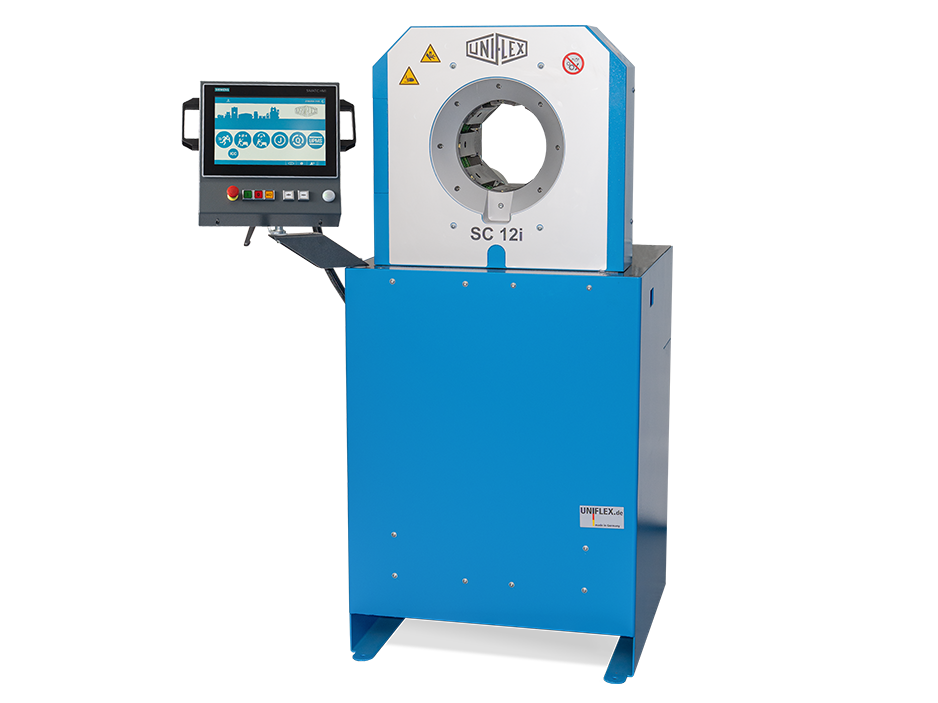

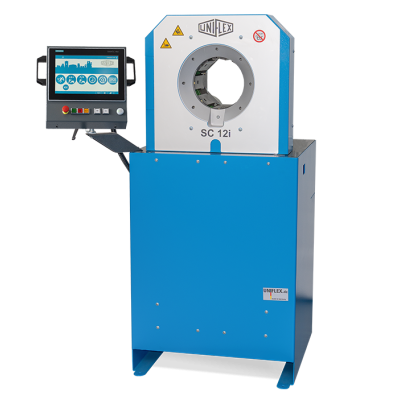

With a 370-ton crimping force, the new SC 12 i is the most powerful workshop crimper for R15 industrial hoses up to 3“ and high pressure hoses up to 1“. With its large opening and a maximum crimping range of up to 139 mm (5.47“), the SC 12 i also crimps 4“ Camlock industrial fittings and even 90° fittings with ease. The compact design allows direct access from all sides, which is particularly important when crimping short workpieces. Three versions of the SC 12 i are available, with a micrometer, Control C.2 or IPC. Like all UNIFLEX crimpers, the SC 12 i features the legendary UNIFLEX slide bearing technology for maximum cleanliness and consistent operations as well as low maintenance requirements.

Variations:

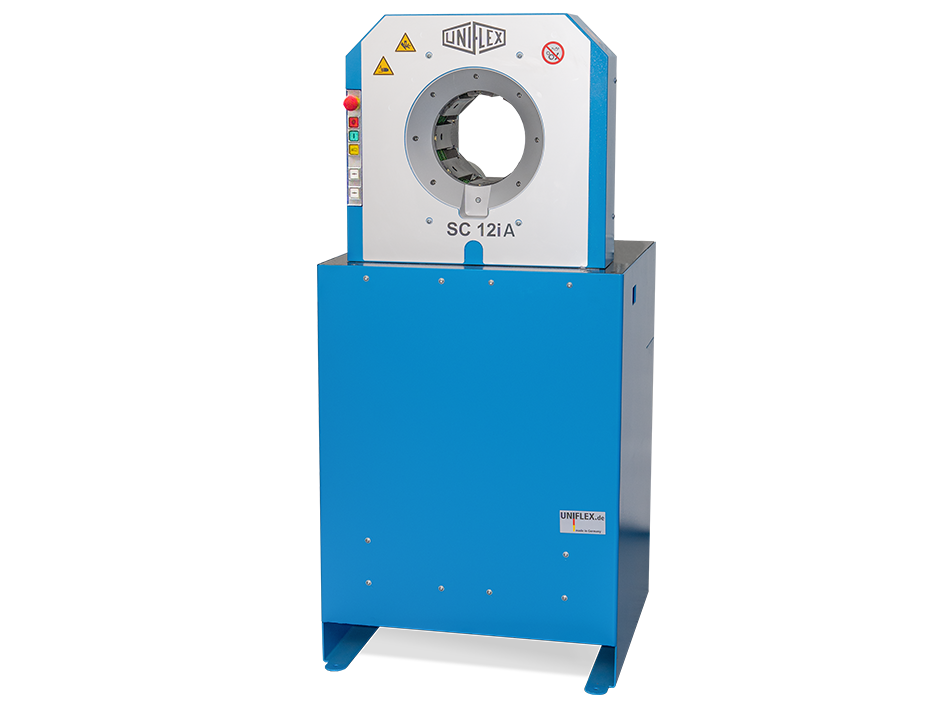

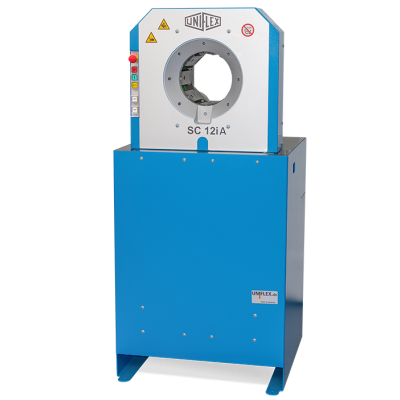

  • SC 12 i A

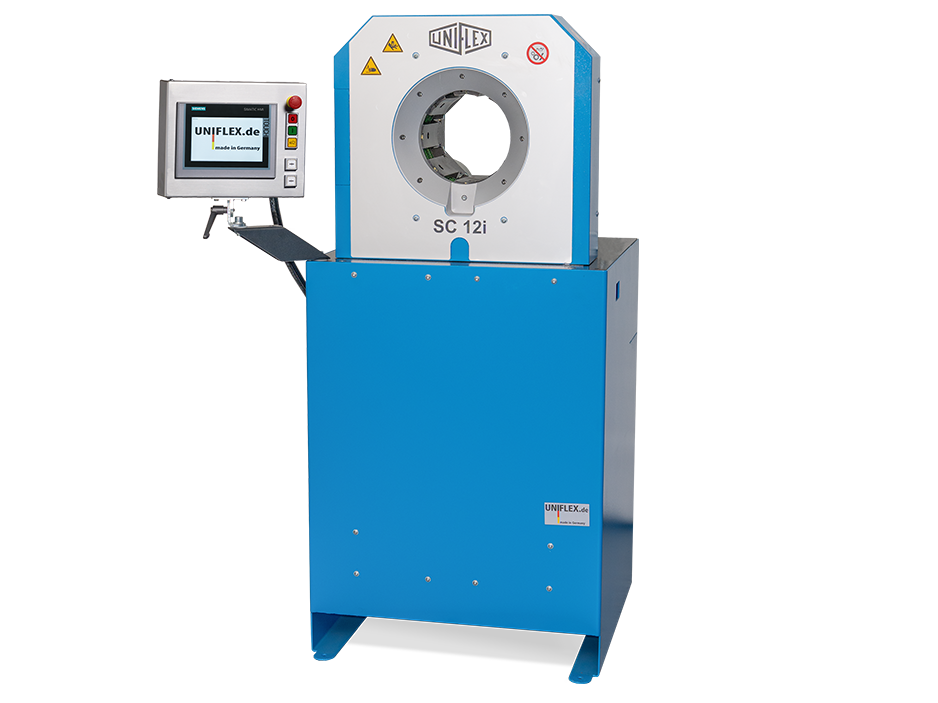

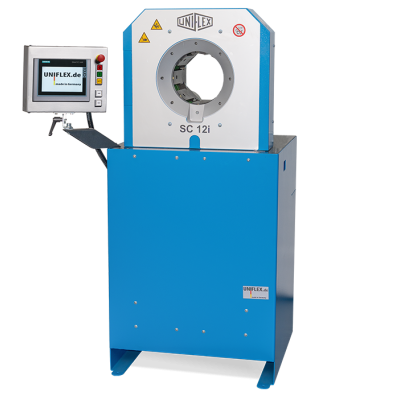

  • SC 12 i C.2
Request product

Features

Large opening travel

  • Easy pressing of elbow fittings without removing the pressing dies

Large pressing tool

  • Also allows crimping of up to 4 inch industrial hoses

Compact design

  • Finds place in any workshop

Plain bearing technology

  • Lubricant-free – for more cleanliness and longer machine life
  • Maximum productivity, with extremely low operating costs
  • No contamination of the hose line with grease
  • Ideal also for the food and pharmaceutical industry
  • Reduces press force loss by up to 20%
  • Consistenly accurate crimp force

Ecoline version

  • Entry level model with the same quality

CE compliant

Technical data

  •
  • SC 12 i A
  • SC 12 i C.2

  • Crimp force (kN/Ton)

  • 3700/370
  • 3700/370

  • No grease: 20% less friction

  • ✓
  • ✓

  • Control

  • Control A
  • Control C.2

  • SAE R 15 / 4SH* 1 piece fitting

  • 3 “
  • 3 “

  • 4SH* 2 piece fitting

  • 3 “
  • 3 “

  • SAE R 15* 2 piece fitting

  • 3 “
  • 3 “

  • Max. crimp range (mm)

  • 139
  • 139

  • Opening travel (mm)

  • + 61
  • + 61

  • Opening without dies (mm)

  • 206
  • 206

  • Master dies length (mm)

  • 126
  • 126

  • Type of dies

  • 239-xx / 237L **
  • 239-xx / 237L **

  • Industrial

  • 4 “
  • 4 “

  • 90° Elbows

  • 2 “
  • 2 “

  • Closing speed (mm/sec)

  • 4,9
  • 4,9

  • Pressing speed (mm/sec)

  • 1,4
  • 1,4

  • Opening speed (mm/sec)

  • 8,6
  • 8,6

  • Noise level (dBA)

  • 70
  • 70

  • Drive (kW)

  • 5,5 kW 3 VAC
  • 5,5 kW 3 VAC

  • Oil (l)

  • 85
  • 85

  • Length machine (mm)

  • 690
  • 690

  • Width machine (mm)

  • 750
  • 750

  • Height machine (mm)

  • 1470
  • 1470

  • Weight (kg)

  • 553
  • 555
  • Options

  • 12 VDC / 24 VDC

  • –
  • –

  • 1 Phase

  • –
  • –

  • Control C.2

* Depending on the fitting.
** Without intermediate dies.

Video

Type of dies

Pressbacken
239-xx-øyy



ø mm -mm-
6,8 50
9 50
10 50
12 65
14 65
16 65
17 65
19 65
20 65
22 65
24 65
26 65
28 80
30 80
31 80
32 80
34 80
36 80
38 80
39 80
40 80
44 80
47 100
50 100
54 100
57 100
62 100
237L
ø mm -mm-
54 118
57 118
62 118
67 118
71 118
74 118
78 118
84 118
86 118
90 118
96 118
103 118
106 126
111 126
116 126
121 126
126 126
131 126
